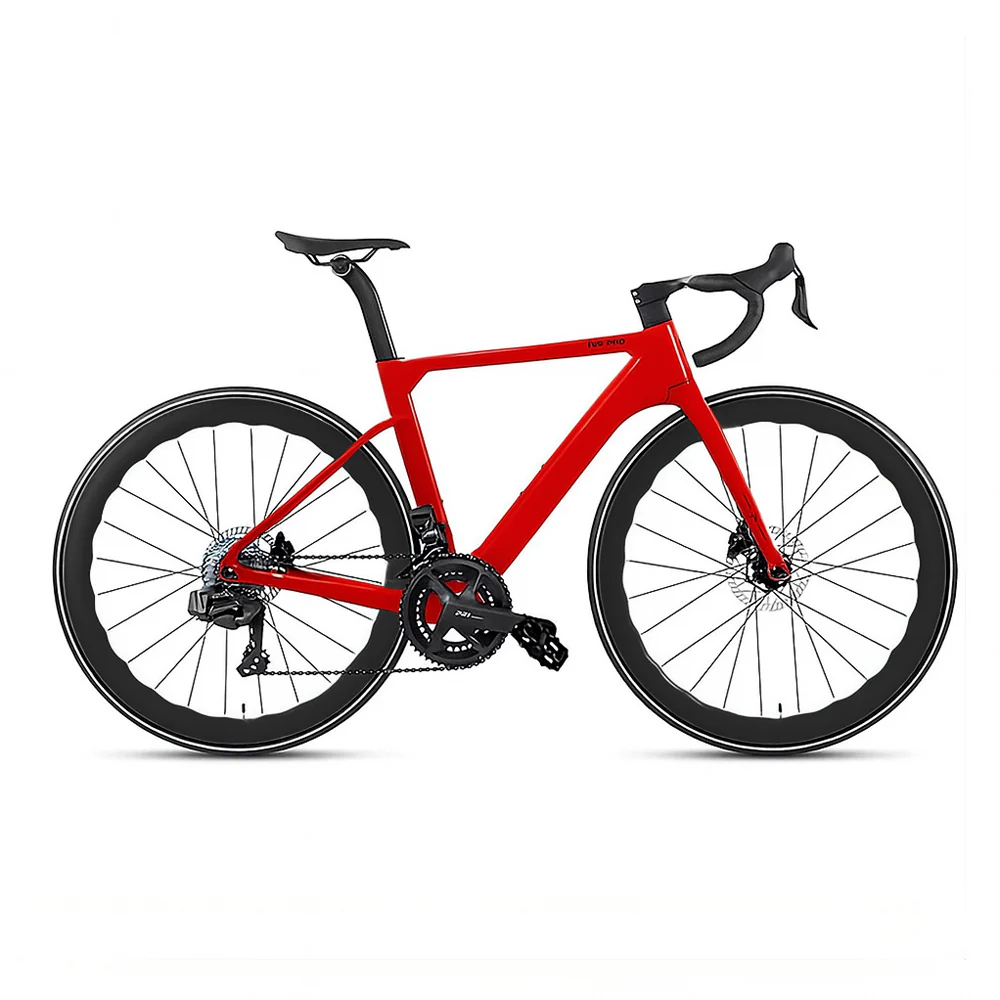

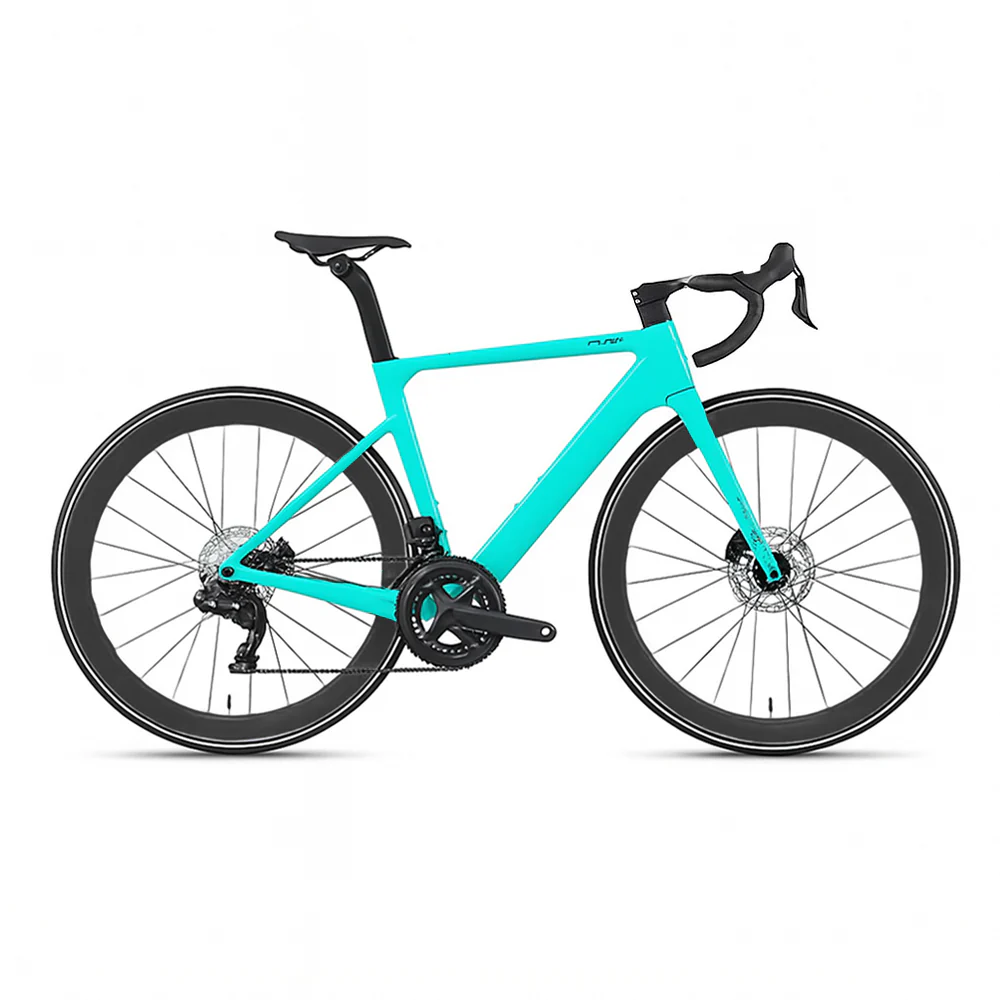

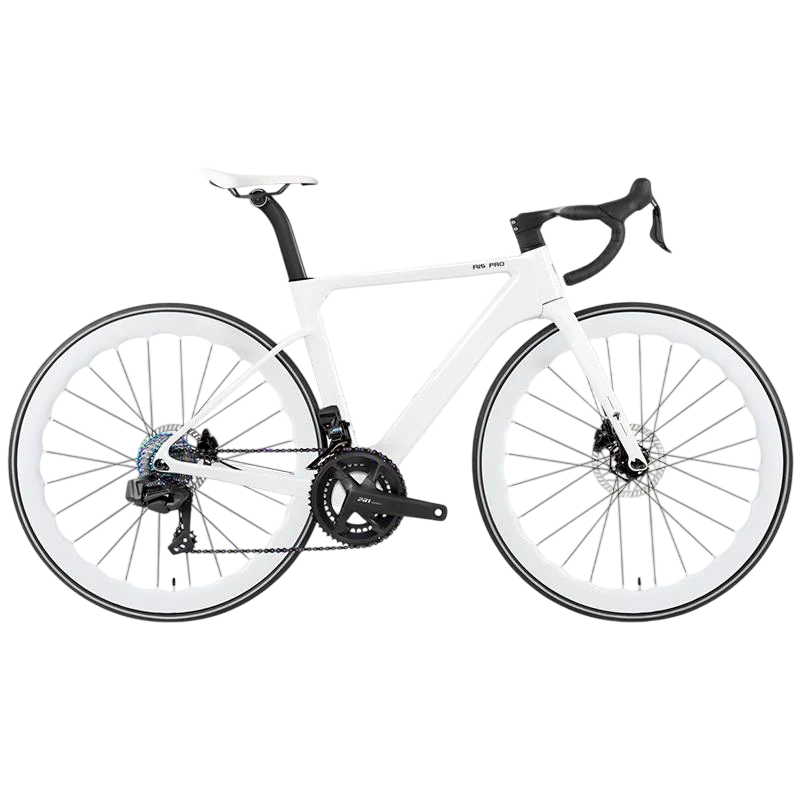

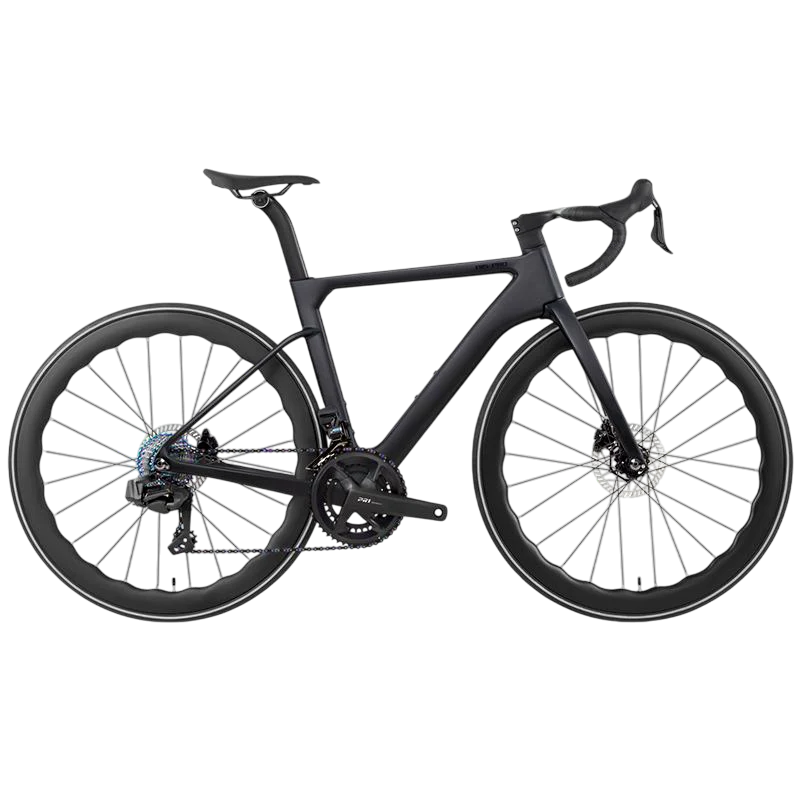

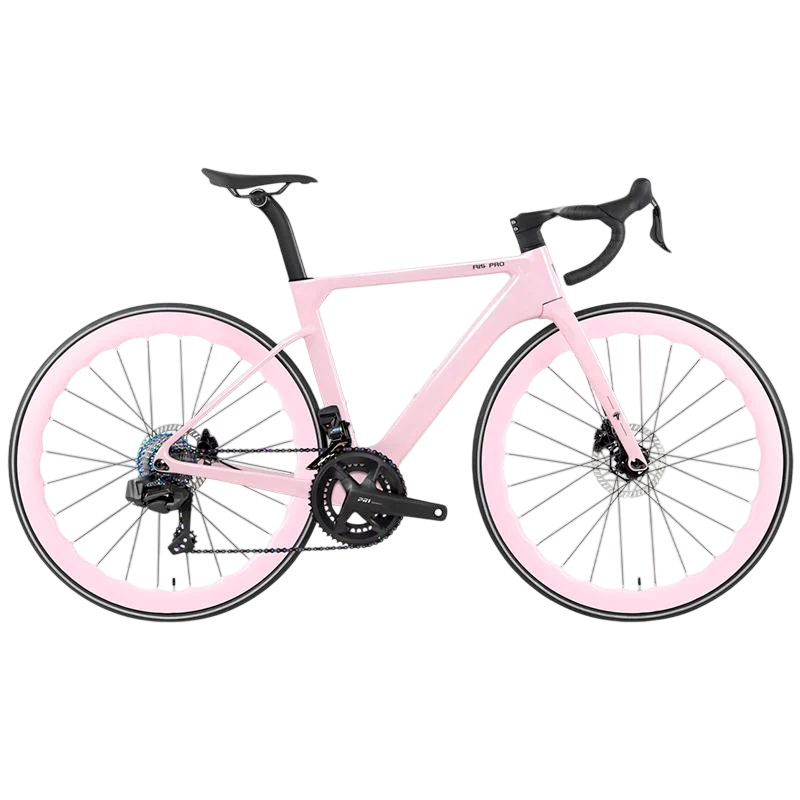

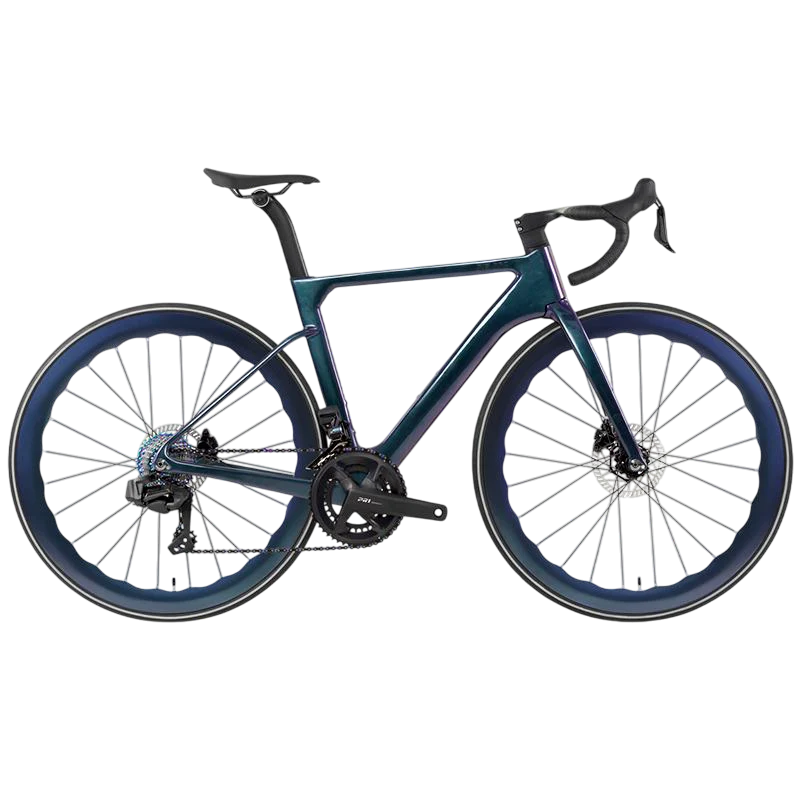

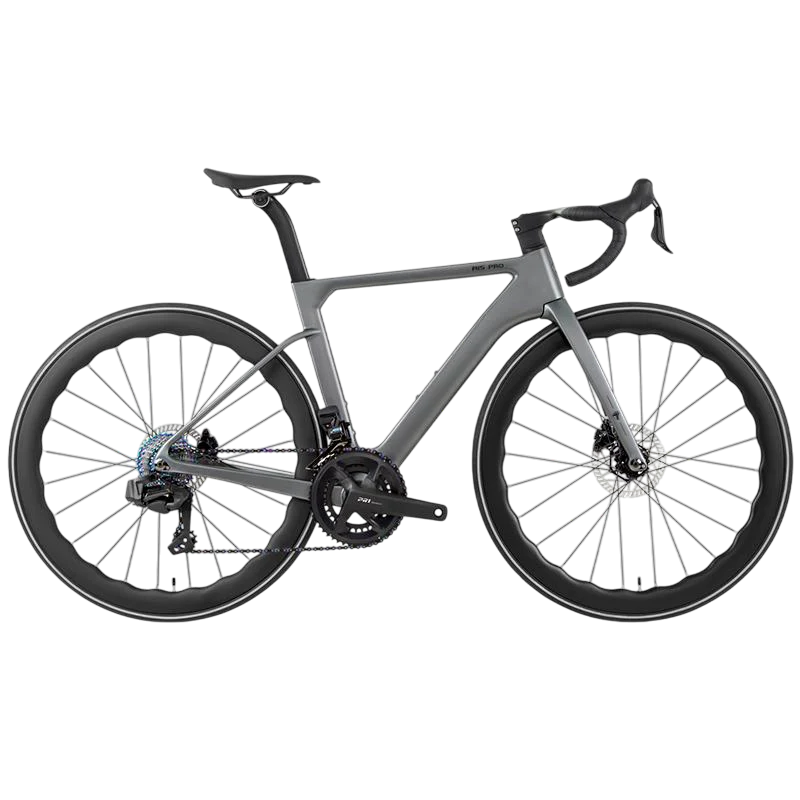

R15 Pro - 3rd - Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 44 / 47 / 50 / 53 / 56 cm
• Colors: White / Black / Dark Gray / Dark Green / Red / Cyan / Pink / Others / Full Holographic
• Weight: 9.1 kg (WheelTop Version) / 8.9 kg (SHIMANO Version)

---

Frame & Structure

• Frame: R15pro (Disc & Thru-Axle 12×142), high modulus carbon fiber, Aero-Racing design with internal cable routing
• Fork: R15pro (Disc & Thru-Axle 12×100), high modulus carbon fiber, 700C
• Seat Post: High modulus carbon fiber, Aero-Racing profile

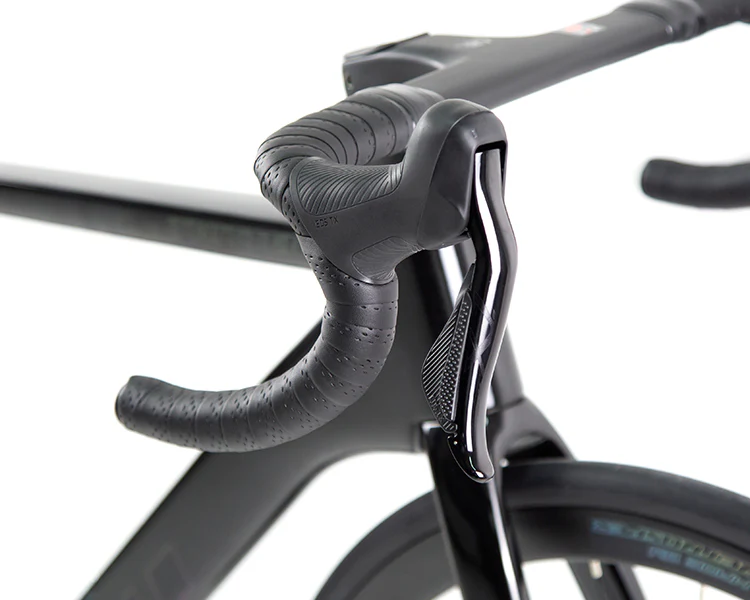

• Handlebar: Integrated aluminum alloy handlebar & stem (400×90 mm), full internal cable routing
• Clamps: Hidden screw fit to frame
• Headset: CNC aluminum alloy with sealed bearings (52×52 mm)
• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
• Washer: Special for internal cable routing

---

Drivetrain Options

Variant 1 – WheelTop TX (2×12-Speed Wireless Hydraulic, Carbon Wave Wheel)

• System: WheelTop TX 24S (2×12), wireless & hydraulic
• Shifters: WheelTop EDS TX (2×12-speed, wireless & hydraulic)
• Front Derailleur: WheelTop EDS TX (2-speed, wireless)
• Rear Derailleur: WheelTop EDS TX (12-speed, wireless)
• Crankset: SENICX PRF aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 12-speed, 11–32T
• Chain: SUMC 12-speed
• Brakes: WheelTop hydraulic disc (160 mm front / rear)

---

Variant 2 – SHIMANO 105 R7120 (2×12-Speed Hydraulic, Carbon Wave Wheel)

• System: SHIMANO 105 R7120 (2×12-speed, hydraulic)
• Shifters: SHIMANO 105 R7120 (2×12-speed, hydraulic)
• Front Derailleur: SHIMANO 105 R7100 (2-speed)
• Rear Derailleur: SHIMANO 105 R7100 (12-speed)
• Crankset: SENICX PRF aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 12-speed, 11–32T
• Chain: SUMC 12-speed
• Brakes: SHIMANO 105 R7070 hydraulic disc (160 mm front / rear)

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
• Rims: RS high modulus carbon fiber wave rim, W28×H50 mm
• Spokes: SHUNJIU circular 14G
• Tires: RS 700×28C, foldable with reflective edges

---

Braking System

• WheelTop Version: Hydraulic disc, 160 mm front / 160 mm rear
• SHIMANO Version: SHIMANO 105 R7070 hydraulic disc, 160 mm front / 160 mm rear

---

Additional Components

• Belt: PU material, comfortable & skid-resistant
• Saddle: Lightweight and comfortable racing design
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE performance cables

---

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
