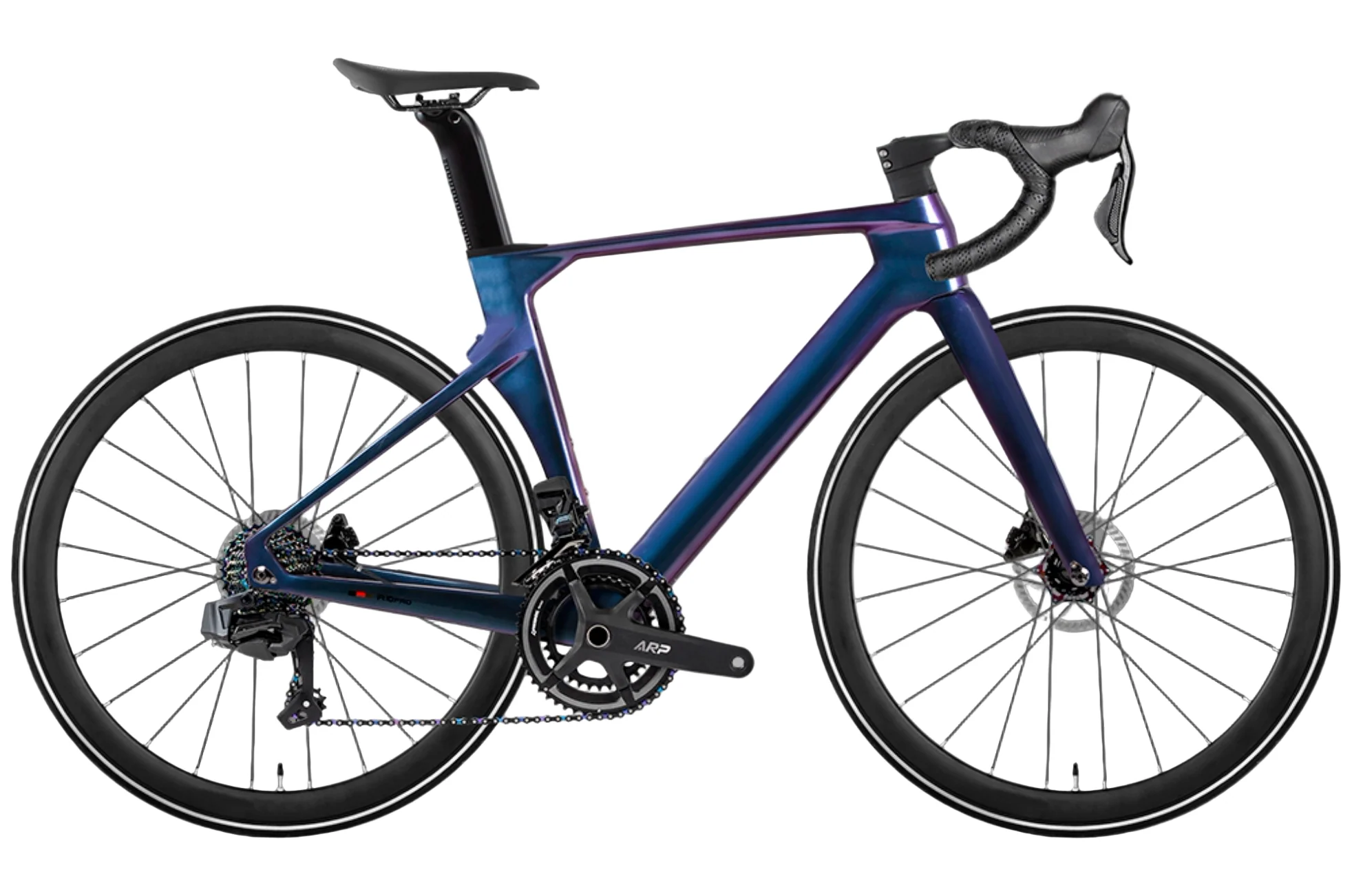

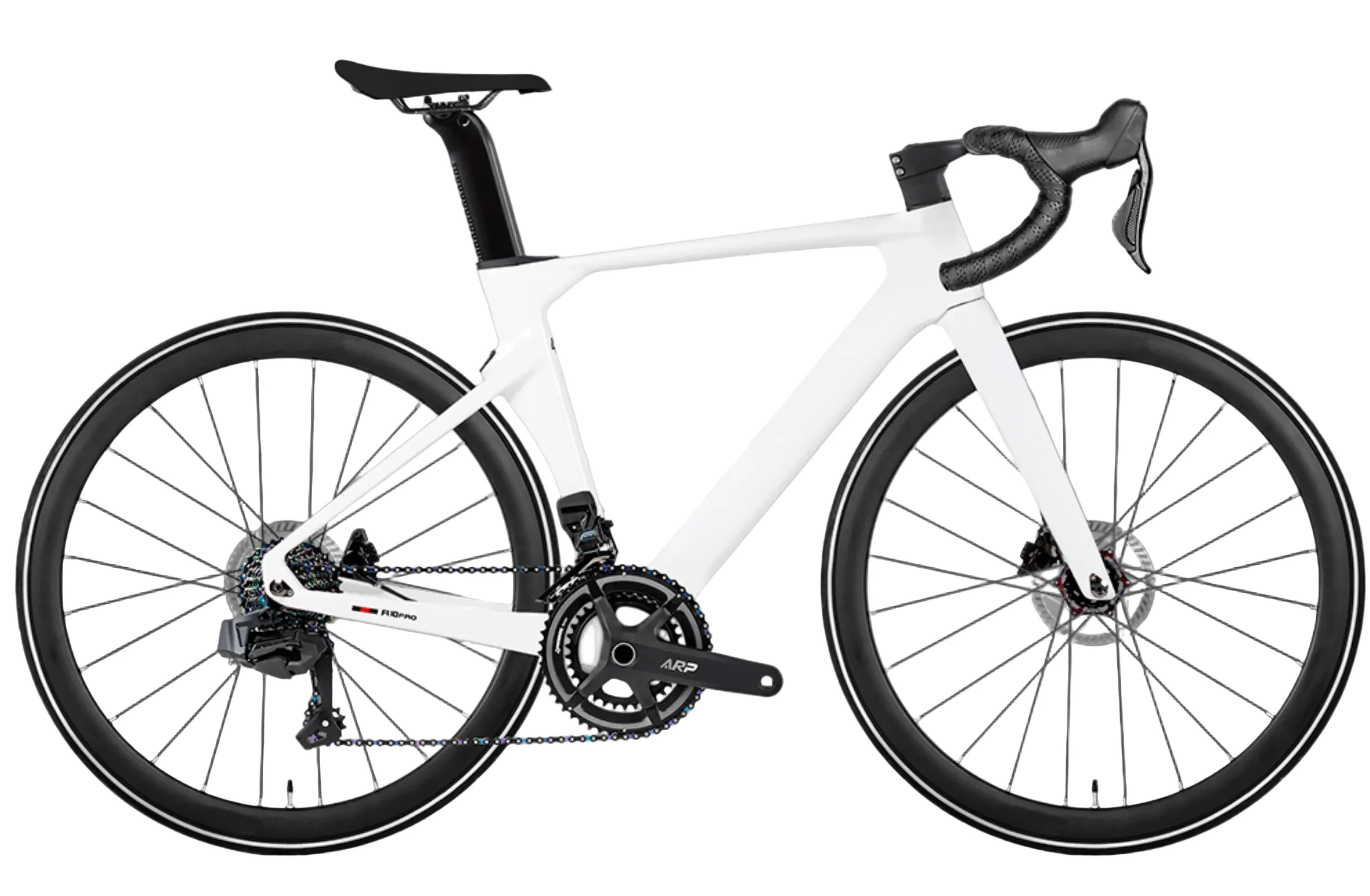

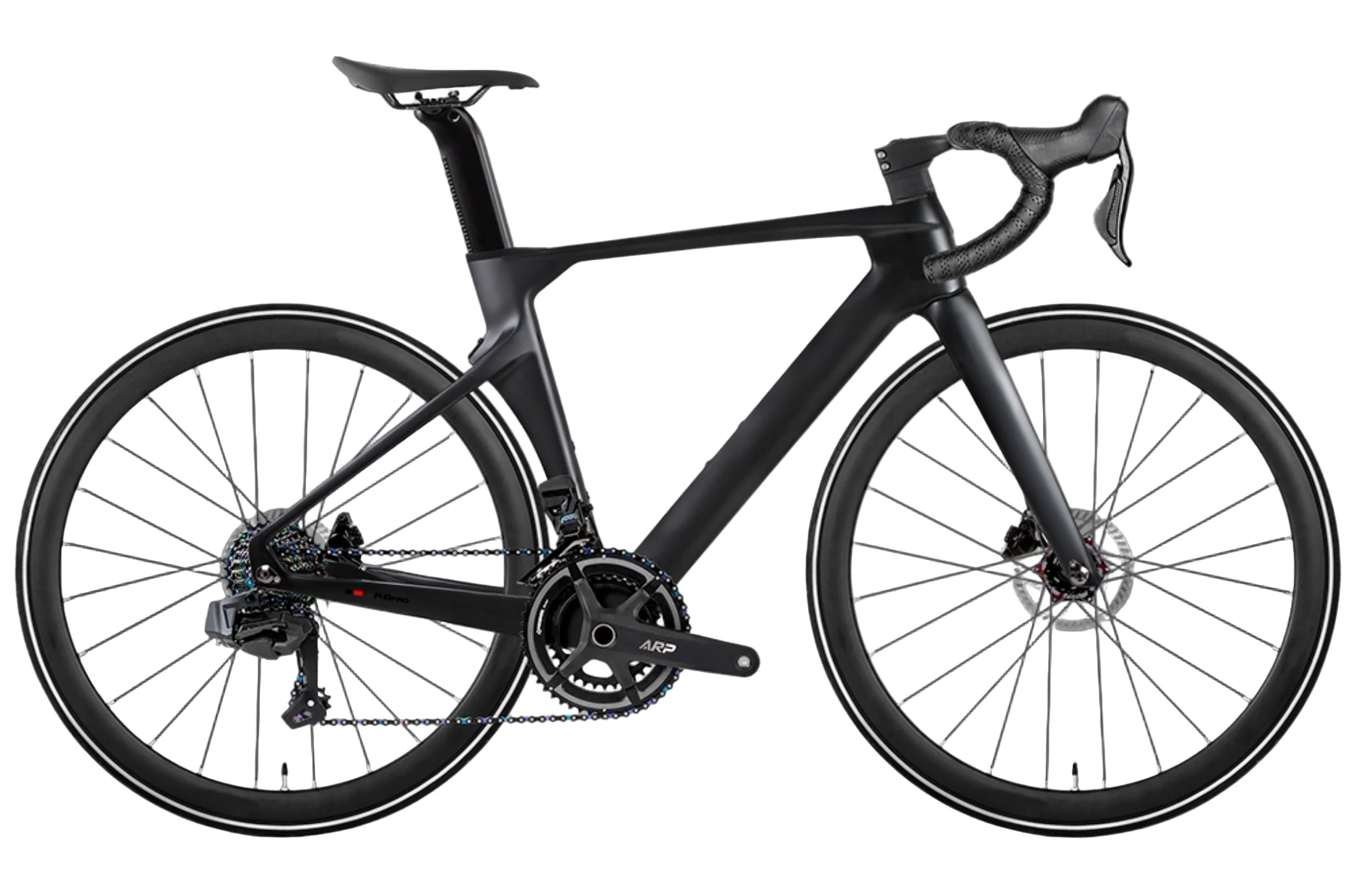

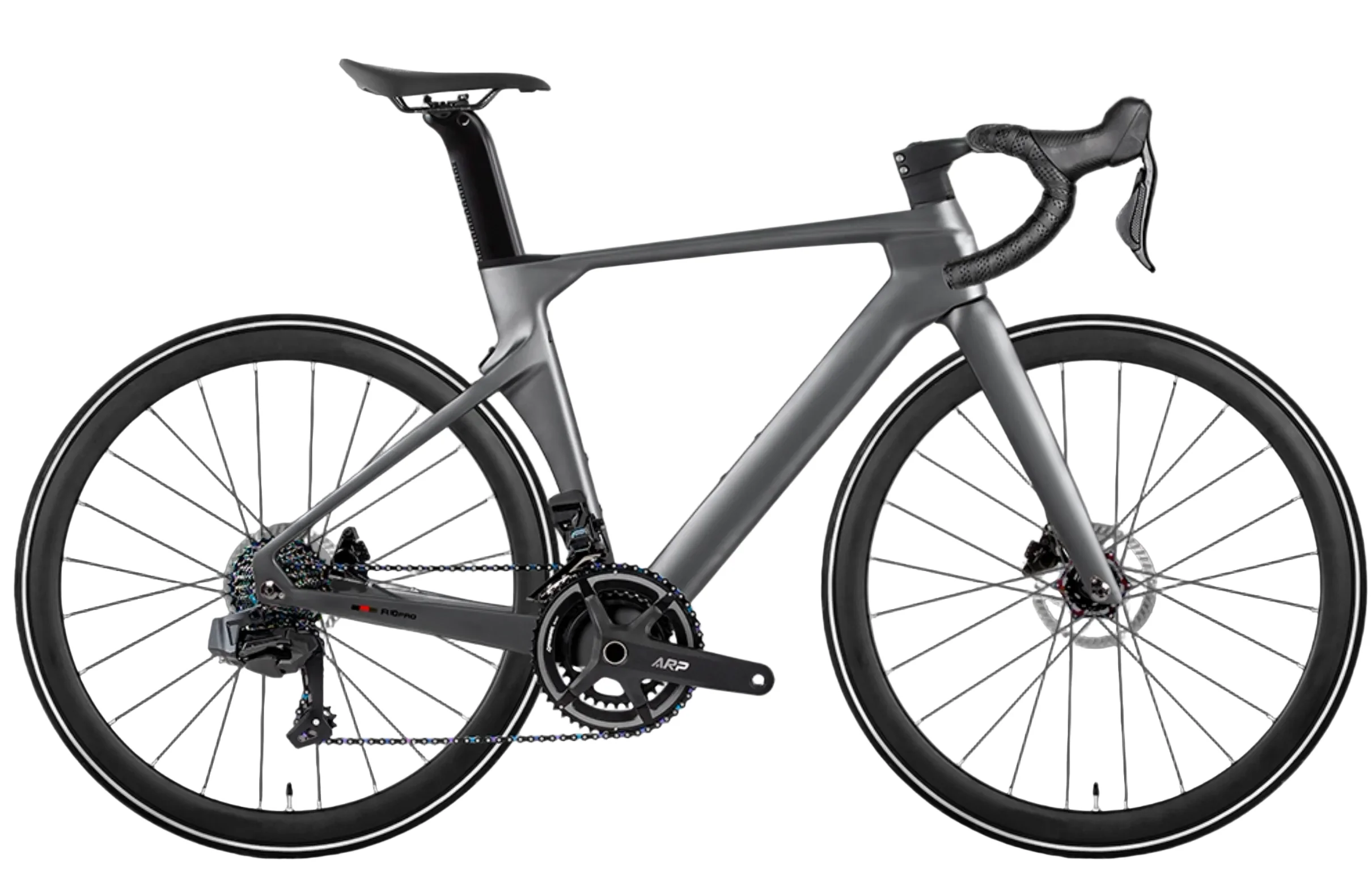

R10 Pro - Disc (Sport) Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C
• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm
• Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic
• Weight: 9.3 kg (Alloy Version) / 9.2 kg (Carbon Version)

---

Frame & Structure

• Frame: R10 (Disc & Thru-Axle 12×142), high modulus carbon fiber, Aero-Racing design with internal cable routing
• Fork: R10pro (Disc & Thru-Axle 12×100), high modulus carbon fiber, 700C
• Seat Post: High modulus carbon fiber, Aero-Racing profile
• Handlebar: Integrated aluminum alloy handlebar & stem (400×90 mm), full internal cable routing
• Clamps: Hidden screw fit to frame
• Headset: CNC aluminum alloy with sealed bearings (52×52 mm)
• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings
• Washer: Special for internal cable routing

---

Drivetrain Options

Variant 1 – RS (SENSAH) 2×11-Speed Hydraulic, Alloy Wheel

• System: RS-22S (2×11-speed, hydraulic)
• Shifters: SENSAH HRD6900-R (2×11-speed)
• Front Derailleur: SENSAH Z2 (2-speed)
• Rear Derailleur: SENSAH RD8500-GS (11-speed)
• Crankset: Prowheel ARP aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 11-speed, 11–30T
• Chain: SUMC 11-speed
• Brakes: SENSAH HRD-G100 hydraulic disc (160 mm front / rear)

---

Variant 2 – RS (SENSAH) 2×11-Speed Hydraulic, Carbon Wheel (50 mm Rim)

• System: RS-22S (2×11-speed, hydraulic)
• Shifters: SENSAH HRD6900-R (2×11-speed)
• Front Derailleur: SENSAH Z2 (2-speed)
• Rear Derailleur: SENSAH RD8500-GS (11-speed)
• Crankset: Prowheel ARP aluminum alloy hollow 34-50T
• Cassette: SUNSHINE 11-speed, 11–30T
• Chain: SUMC 11-speed
• Brakes: SENSAH HRD-G100 hydraulic disc (160 mm front / rear)

---

Wheelset & Tires

Alloy Wheelset

• Hubs: RS aluminum alloy, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
• Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm
• Spokes: SHUNJIU circular 14G
• Tires: RS 700×28C, foldable with reflective edges

---

Carbon Wheelset (50 mm Rim)

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142
• Rims: RS high modulus carbon fiber, W28×H50 mm
• Spokes: SHUNJIU circular 14G
• Tires: RS 700×28C, foldable with reflective edges

---

Braking System

• Brakes: SENSAH HRD-G100 hydraulic disc, 160 mm front / 160 mm rear

---

Additional Components

• Belt: PU material, comfortable & skid-resistant
• Saddle: Lightweight and comfortable racing design
• Pedals: Lightweight & skid-resistant
• Cables: JAGWIRE performance cables

---

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
