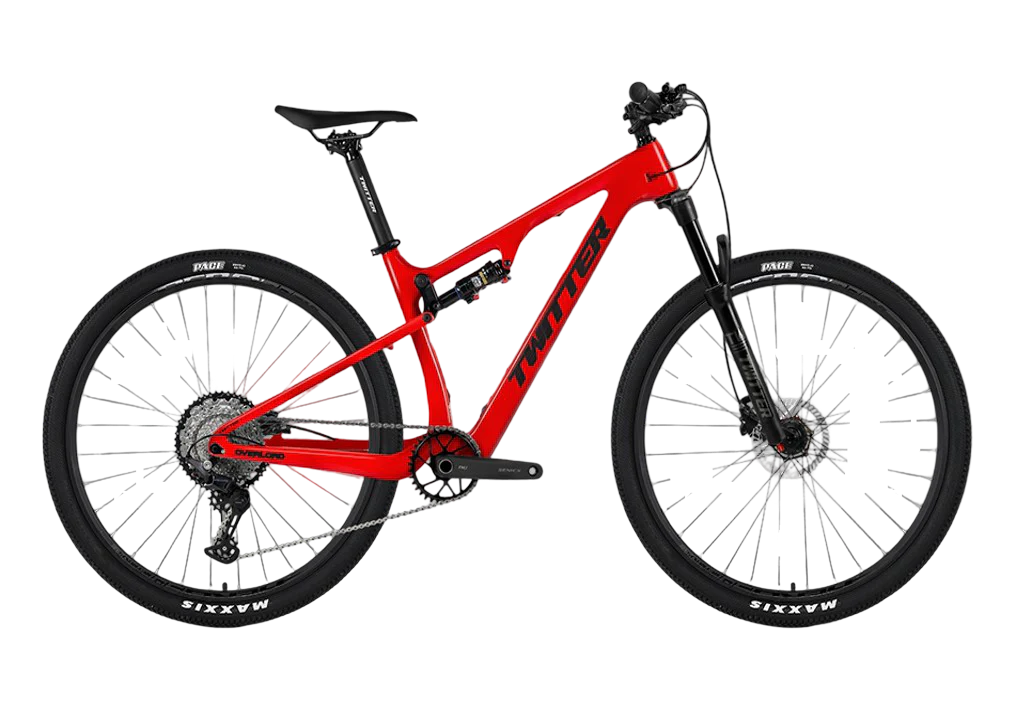

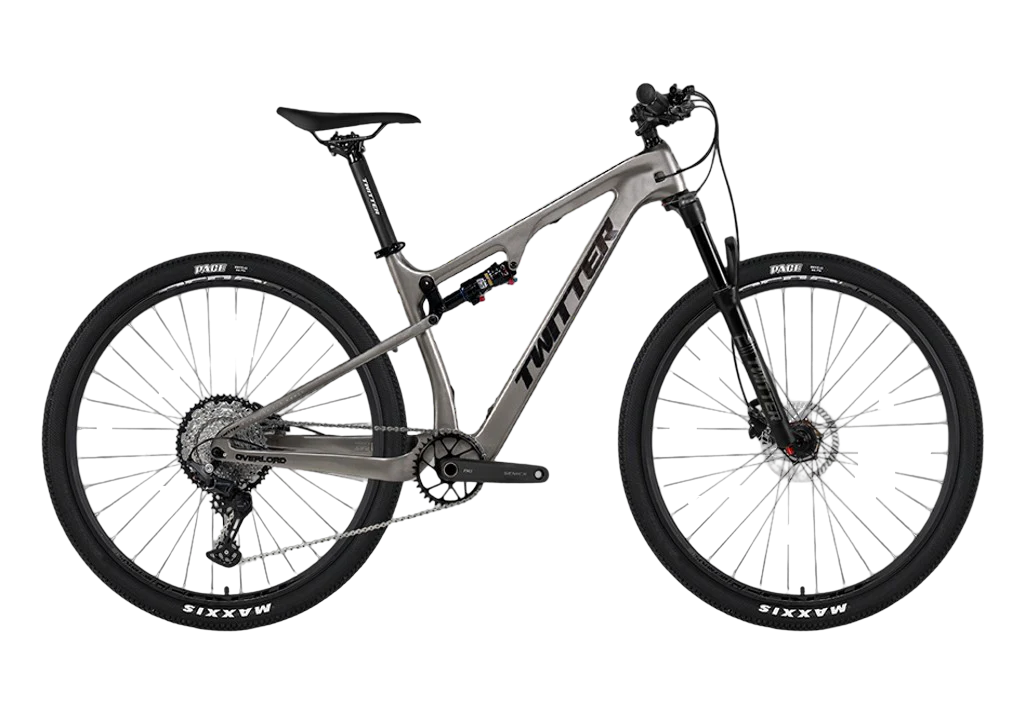

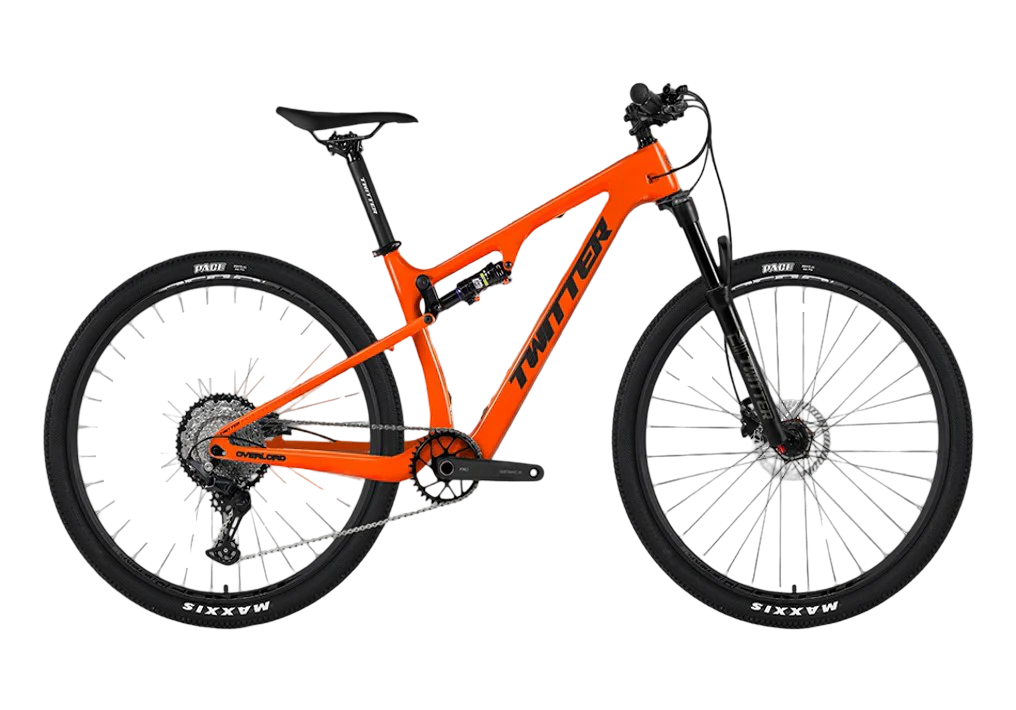

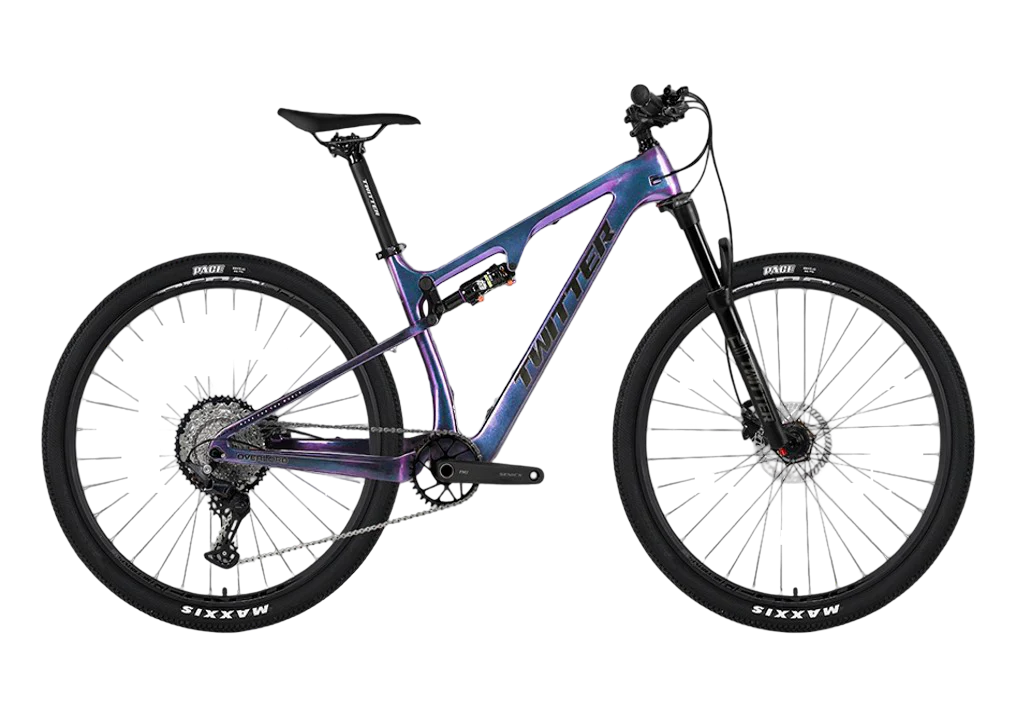

Overlord - Twitter Carbon Mountain Bike

Key Components

• Frame Size: 29" (27.5") × 15" / 17" / 19" / 21"
• Colors: Dark Gray / Silver / Titanium / Red / Orange / Others / Full Holographic
• Weight:
  • 13.5 kg (M6100-12S)
  • 13.7 kg (WheelTop OX-13S)
  • 13.3 kg (SRAM SX 1×12 High)

---

Frame & Structure

• Frame: OVERLORD, All-Mountain (AM), high modulus carbon fiber, internal cable routing, Thru-Axle 12×148 mm Boost, 110 mm rear travel

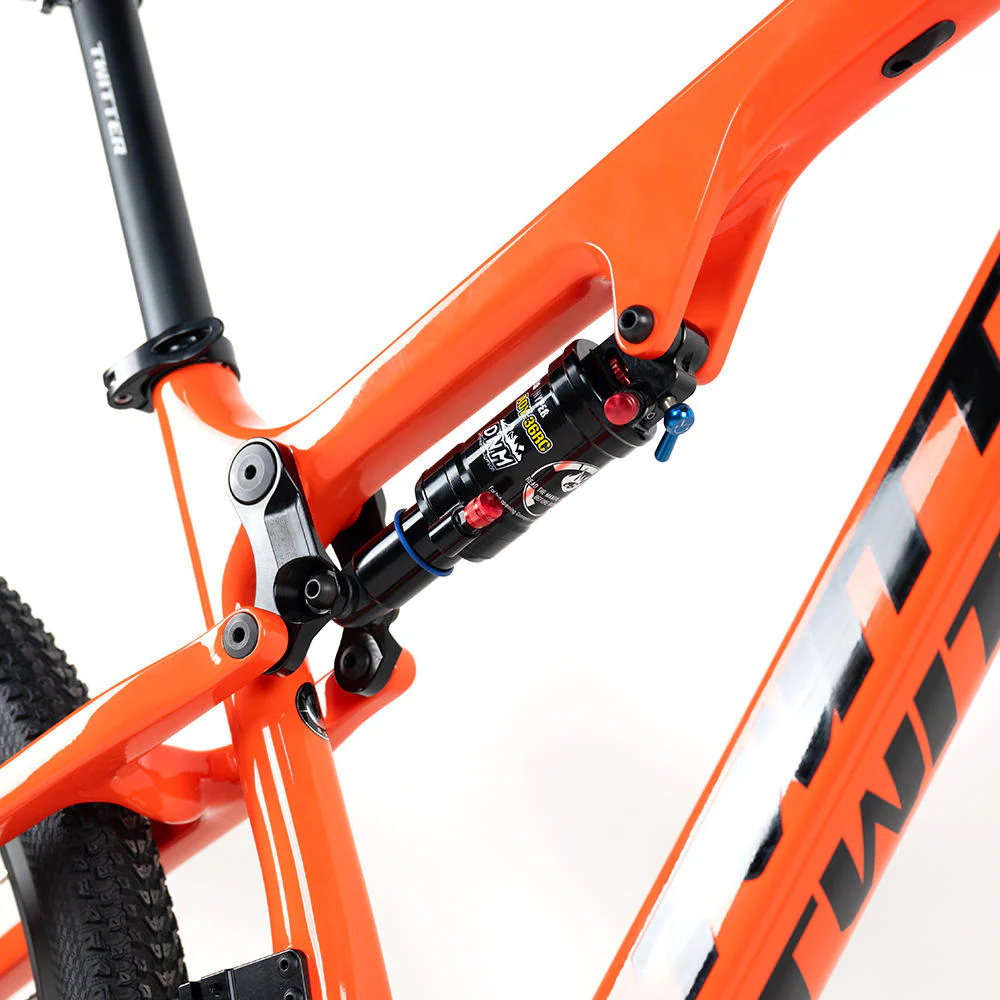

• Rear Shock: DNM air shock, 165×35 mm
• Fork Options:
  • Standard: TW magnesium–aluminum air suspension, 120 mm travel, remote lockout, Thru-Axle 15×110 mm Boost
  • High: ROCKSHOX JUDY Silver, 120 mm air suspension, remote lockout, Thru-Axle 15×110 mm Boost
• Handlebar: RS aluminum alloy, matte black, 31.8×720 mm, stem 45 mm
• Seat Post Options:
  • Standard: RS aluminum alloy, 31.6×350 mm
  • High: RS dropper seat post with remote, 31.6×125 mm travel
• Clamps: Aluminum alloy, 34.9 mm
• Headset: CNC aluminum alloy with sealed bearings (42×52 mm)
• Bottom Bracket:
  • M6100 / WheelTop: T47×24 mm (threaded)
  • SRAM SX: T47×29 mm (threaded)
• Washer: Carbon fiber 3K, 3×28.6×10 mm

---

Drivetrain Options

Variant 1 – SHIMANO DEORE M6100 1×12-Speed

• System: SHIMANO DEORE M6100 1×12-speed
• Shifter: SHIMANO DEORE M6100
• Front Derailleur: None

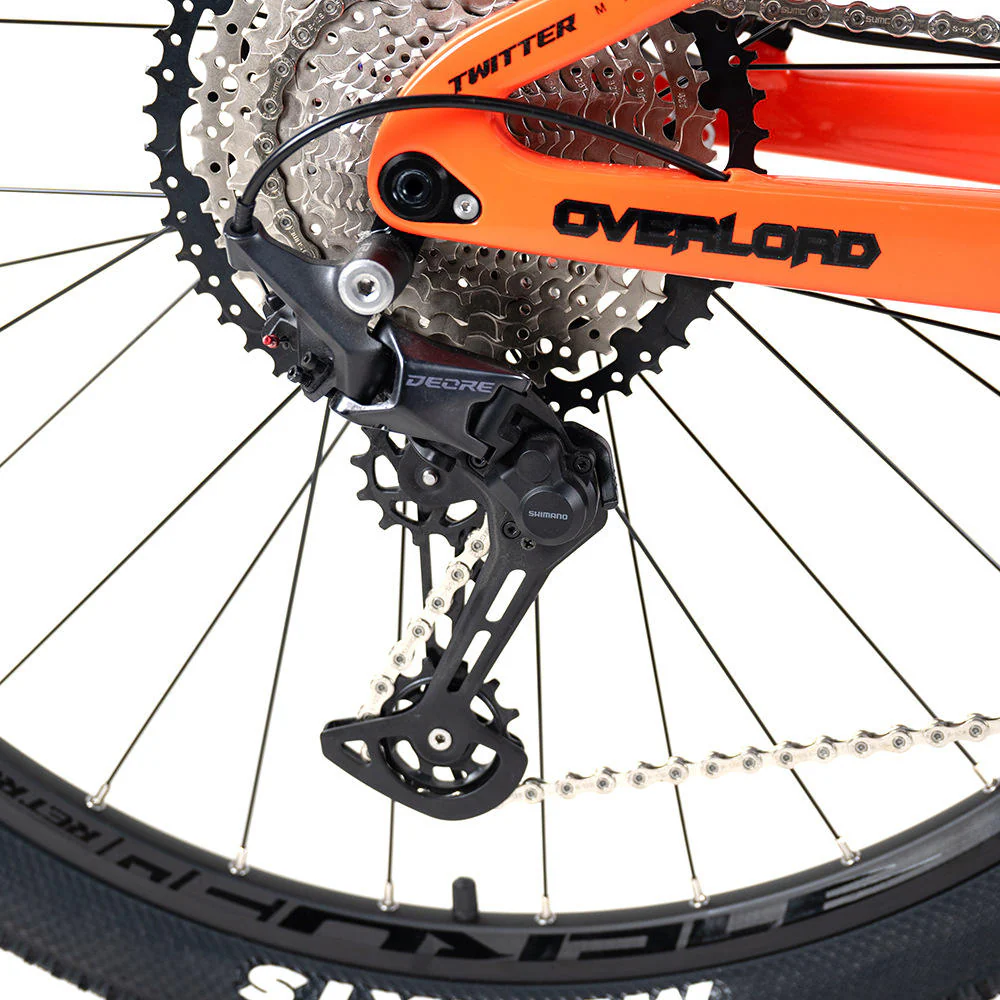

• Rear Derailleur: SHIMANO DEORE M6100 (12-speed)
• Crankset: SENICX-FM3 aluminum alloy, hollow 36T
• Cassette: SUNSHINE 12-speed, 11–50T
• Chain: SUMC 12-speed

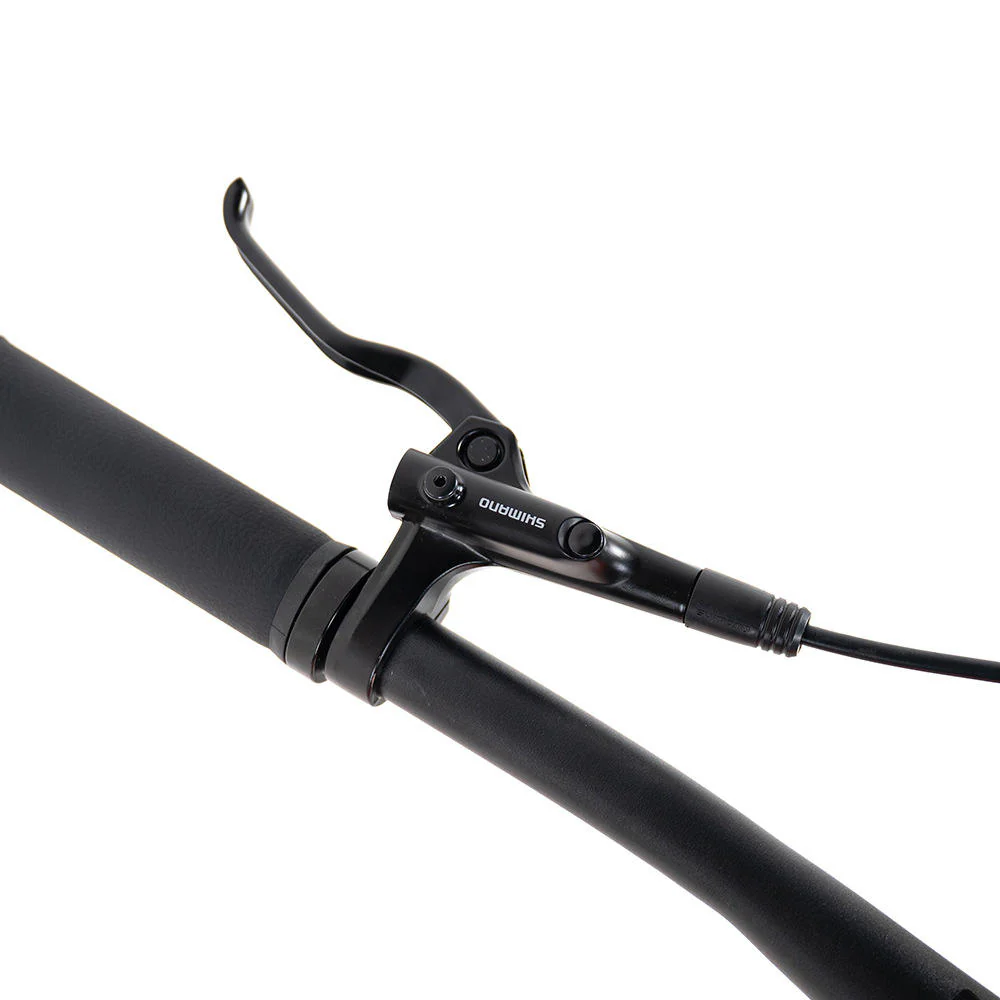

• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Variant 2 – WheelTop EDS OX 1×13-Speed (Wireless)

• System: WheelTop EDS OX wireless hydraulic 1×13-speed
• Shifter: WheelTop EDS OX wireless
• Front Derailleur: None
• Rear Derailleur: WheelTop EDS OX wireless (13-speed)
• Crankset: SENICX-FM3 aluminum alloy, hollow 36T
• Cassette: SUNSHINE 13-speed, 11–50T
• Chain: SUMC 13-speed
• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Variant 3 – SRAM SX Eagle 1×12-Speed (High)

• System: SRAM SX Eagle 1×12-speed
• Shifter: SRAM SX Eagle
• Front Derailleur: None
• Rear Derailleur: SRAM SX Eagle (12-speed)
• Crankset: SRAM SX Eagle DUB, 34T
• Cassette: SRAM PG1210 Eagle, 11–50T
• Chain: SRAM SX Eagle (12-speed)
• Brakes: SHIMANO MT200 hydraulic disc (160 mm front / rear)

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG, 32 holes, Thru-Axle F15×110 / R12×148 mm Boost
• Rims: RS aluminum alloy, double wall with rivets, W25×H21 mm
• Spokes: SHUNJIU circular 14G
• Tires: MAXXIS 29" (27.5") × 2.25"

---

Braking System

• Brakes: SHIMANO MT200 hydraulic disc brakes, 160 mm front / 160 mm rear

---

Additional Components

• Grips: PU leather locking grips, 22.2×120 mm
• Saddle: Lightweight and comfortable MTB saddle
• Pedals: RS aluminum alloy MTB pedals with sealed bearings
• Cables: JAGWIRE internal and external routing

---

Included Accessories

• Reflectors: Handlebar, seat post, front wheel, rear wheel
• Extras: Bottle cage + tools
• Documentation: Manual + warranty card
