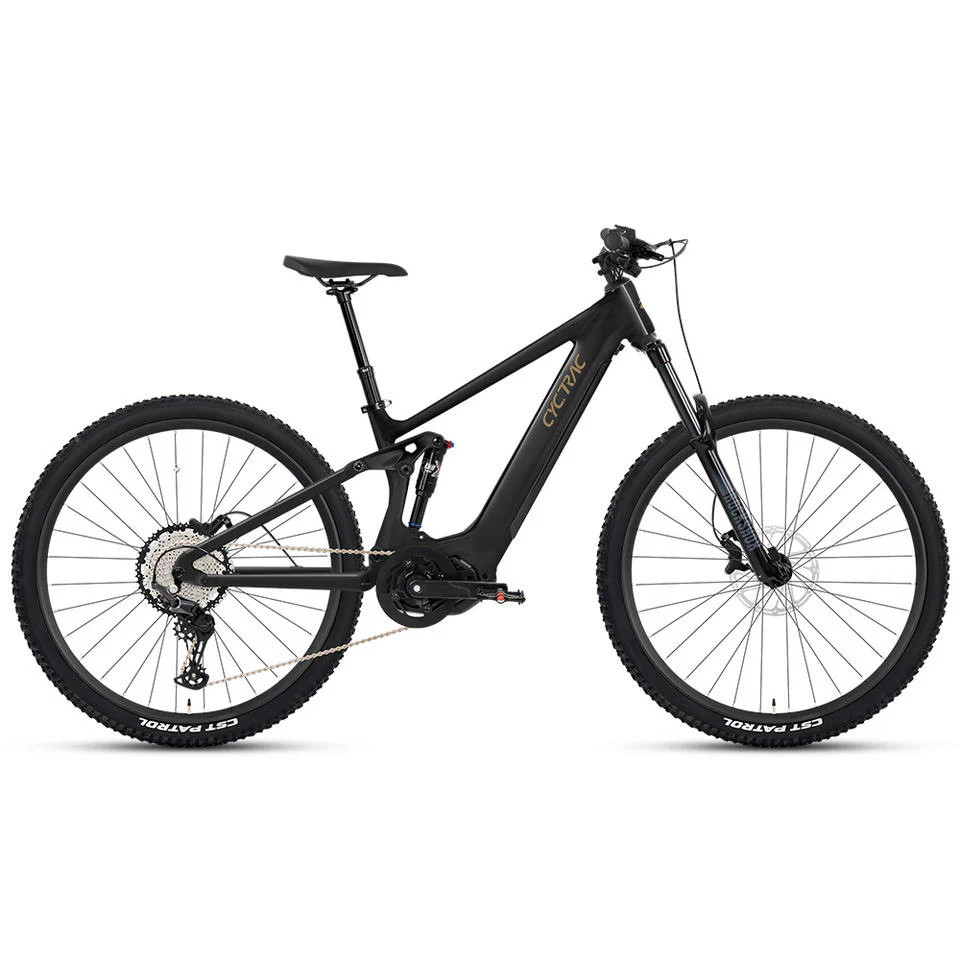

EM6 - 3RD - Cyctrac Electric Mountain Bike
Key Components
|
Specification
|
Detail
|
|
Bike Model
|
EM6 (3rd)
|
|
Frame Size
|
29(27.5)×16" / 18"
|
|
Bike Color
|
Silver / Black / DarkGreen
|
|
Net Weight
|
Varies from 25.9 KG to 26.7 KG (depending on configuration)
|
|
Max Load
|
160 KG
|
Frame & Structure
•Frame: CYCTRAC-EM6(3rd), Enduro level, AL6061-T6, Flat weld, Inner cables, Thru-axle 12148 Boost, UDH, 150 & 160mm Travel, DNM air rear shox 20562
•Head Sets: Inner-Cables routing, Sealed bearings 52*52mm
•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 45, Clamps 34.9mm

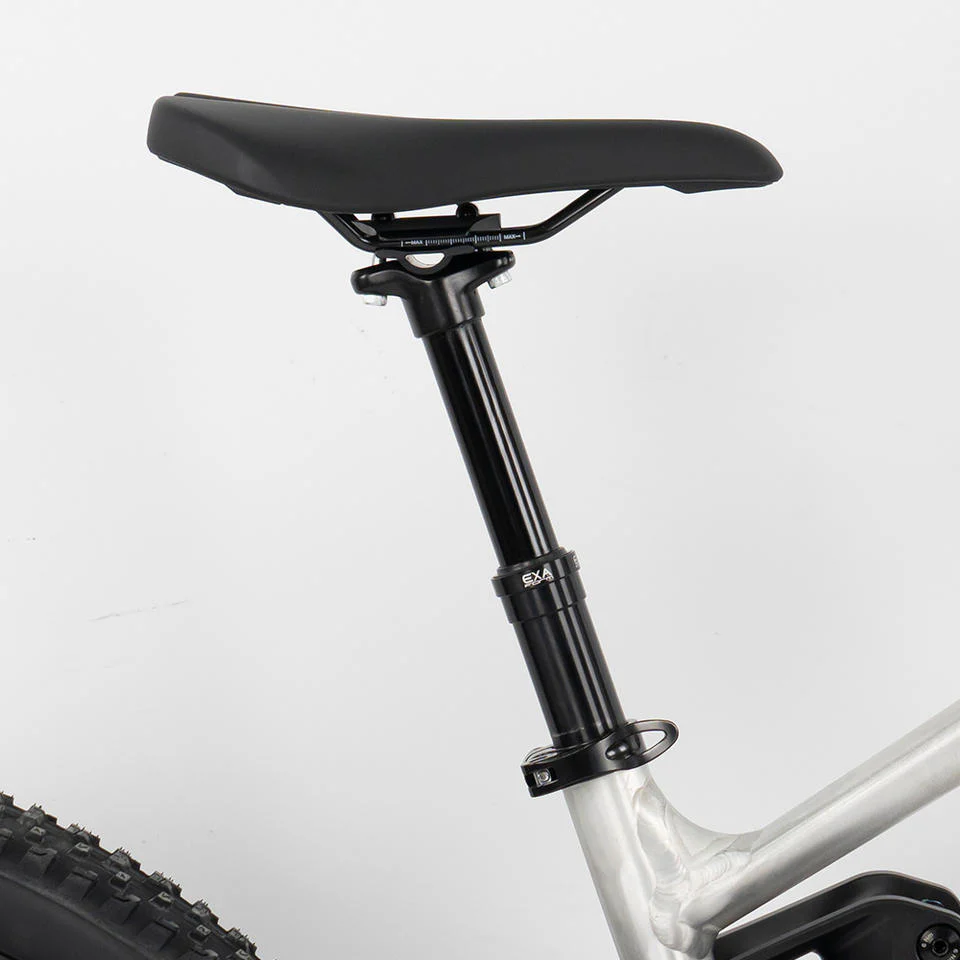

•Seat Post: RS Height-adjustable & Remote 31.6*100/125mm Travel
Motor System & Battery

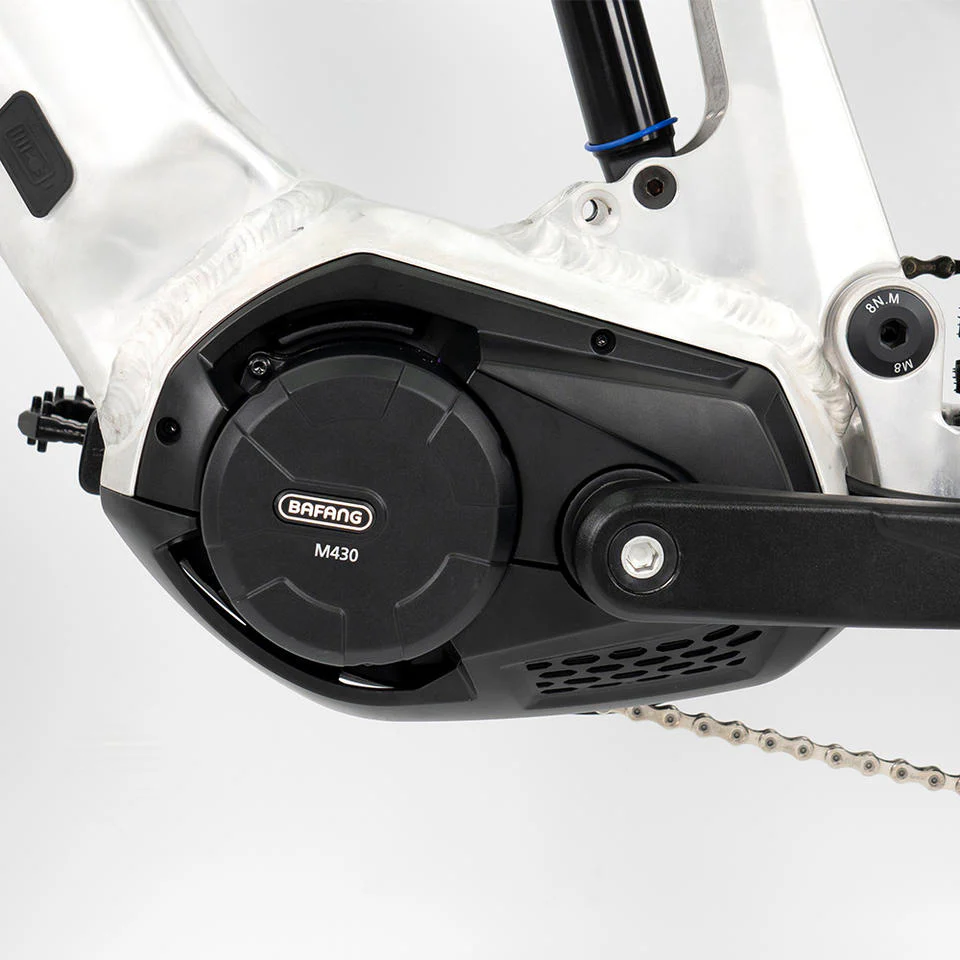

•Motor System: Bafang Mid, M430, 48V500W
•Max Torque: 140 Nm
•Battery: Samsung 21700 Li-ion, 720Wh, 48V15A
•Endurance (Pedal Assist): Max 120-140 KM
•Speed Limit: 25KMh Default (max 45KMh)
•Pedal Sensor: Torque + Cadence, Throttle available
•Full charge time: 5-6 Hours
•Charger: 3A, DC2.1
•HMI: CYC-C101, LCD digital, USB/Type-C
•Waterproof: IP X6
Drivetrain Options (ConfRev)
Variant 1 – LOW (M6100/12S+M430/500W)
•Fork: RS, MgAl alloy, Air, Manual, 150mm, Thru-axle 15*110
•Derailleur Lever: SHIMANO DEORE/M6100-12S

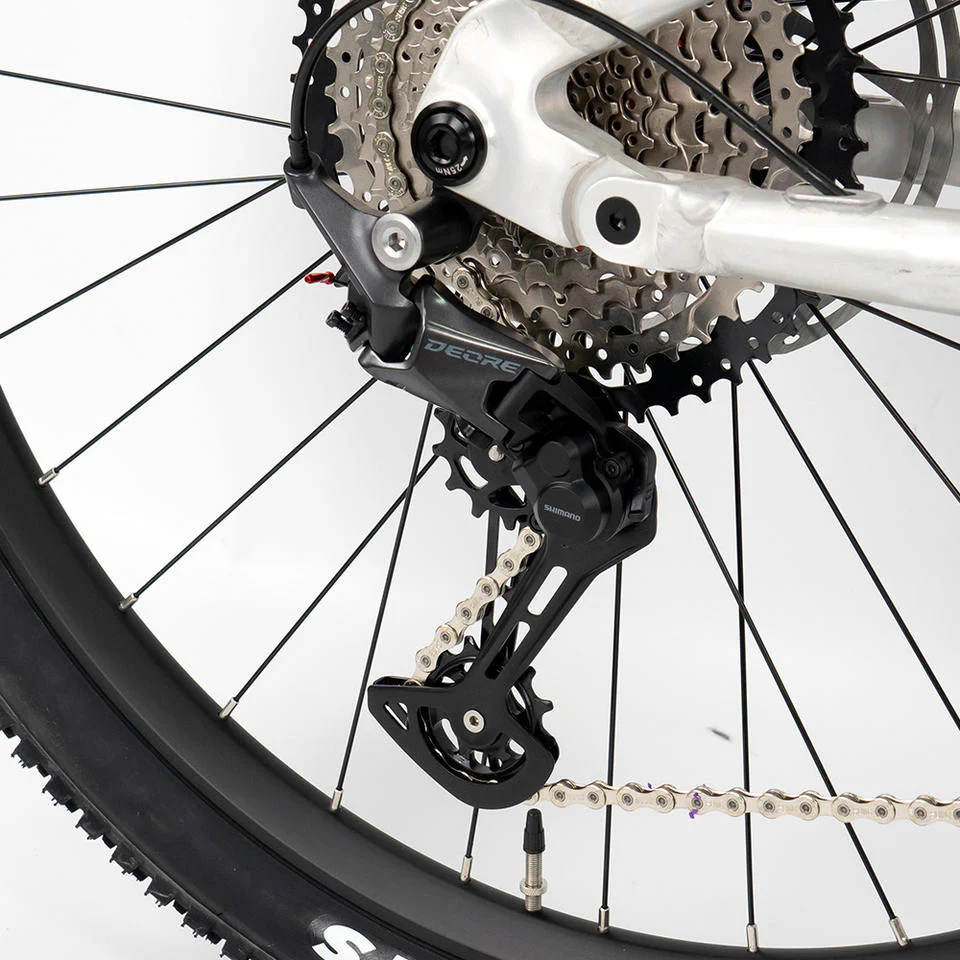

•Rear Derailleur: SHIMANO DEORE/M6100-12S
•Cranksets: Matching with Mid Motor, 38T
•Cassettes: SUNSHINE-12S, 11-50T
•Chain: SUMC-12S
Variant 2 – HIGH (M6100/12S+M430/500W)
•Derailleur Lever: SHIMANO DEORE/M6100-12S
•Rear Derailleur: SHIMANO DEORE/M6100-12S
•Cranksets: Matching with Mid Motor, 38T
•Cassettes: SUNSHINE-12S, 11-50T
•Chain: SUMC-12S
Variant 3 – HIGH (Wheeltop 12S+M430/500W)
•Derailleur Lever: Wheeltop EDS OX-12S wireless
•Rear Derailleur: Wheeltop EDS OX-12S wireless
•Cranksets: Matching with Mid Motor, 38T
•Cassettes: SUNSHINE-12S, 11-50T
•Chain: SUMC-12S
Wheelset & Tires
•Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost
•Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm
•Spoke: SHUNJIU, Circular 14G
•Tire: CST, 29/27.5×2.4"
Braking System
•Brake: RS, Alu alloy, 4-piston hydraulic disc, 203/203mm (Standard on all variants)
Additional Components
•Grips: Circular 22.2×120mm, PU leather & locking Ring
•Saddle: RS, Comfortable and Thickened for MTB
•Pedals: RS, Alu alloy & Skid resistant for MTB
